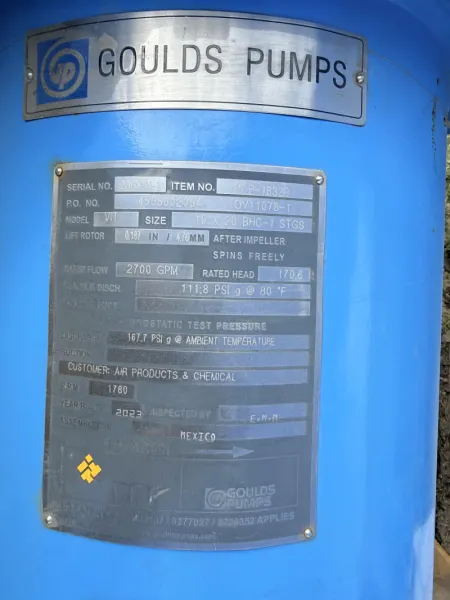

Goulds VIT Vertical Turbine Pump Package with GE XSD Ultra 841 Motor – 2,700 GPM – 170 ft Head – 200 HP – 460V Goulds vertical turbine pump package driven by a GE XSD Ultra 841 severe duty motor. This system is designed for high-capacity industrial pumping applications requiring reliable continuous-duty operation. The Goulds VIT pump delivers 2,700 GPM at 170.6 ft of head and operates at 1780 RPM, powered by a 200 HP GE severe-duty motor rated for 460V, 3-phase service. The pump was manufactured in 2023 and supplied for Air Products & Chemicals, indicating service in demanding industrial process environments. This package is well suited for process water, cooling water, industrial utilities, and chemical plant service. Package Includes Goulds VIT Vertical Turbine Pump GE XSD Ultra 841 Severe Duty Electric Motor Pump and motor configured as a vertical turbine pumping package Pump Details Manufacturer Goulds Pumps (ITT) Model / Type Model: VIT Vertical Turbine Pump Size: 10 x 20 BHC – 1 Stage Hydraulic Performance Rated Flow: 2,700 GPM Rated Head: 170.6 ft Speed: 1780 RPM Pressure Data Pump Discharge Pressure: 111.8 PSIG @ 80°F Hydrostatic Test Pressure: 167.7 PSIG @ Ambient Temperature Additional Pump Information Lift Rotor: 0.18 in (4.76 mm) after impeller Pump spins freely per manufacturer dataplate Identification Serial Number: GW03A831-2 Item Number: 18-P-1832B P.O.: 4505602084 / OV11078-1 Customer: Air Products & Chemicals Year Built: 2023 Assembly Location: Mexico Motor Details Manufacturer GE Industrial Motors (XSD Ultra 841 Series) Motor Specifications Model: 5KS3447XAJ6441 Horsepower: 200 HP Voltage: 460 V Phase: 3 Frequency: 60 Hz Amperage: 220 A Speed: 1790 RPM Frame: L447VP20 Enclosure: TEFC (Totally Enclosed Fan Cooled) NEMA Design: B Insulation Class: F Service Factor: 1.15 Ambient Temperature: 40°C Duty: Continuous Efficiency NEMA Premium Efficiency Nominal Efficiency: 96.2% Minimum Guaranteed Efficiency: 95.4% Bearings Upper Bearing: 235A2536AB01 Lower Bearing: 6217C3 Lubrication Grease: Mobil Polyrex EM
